CS3 BU (B-Stock)
$970.20 $1,386.00 to Save 30%

Features

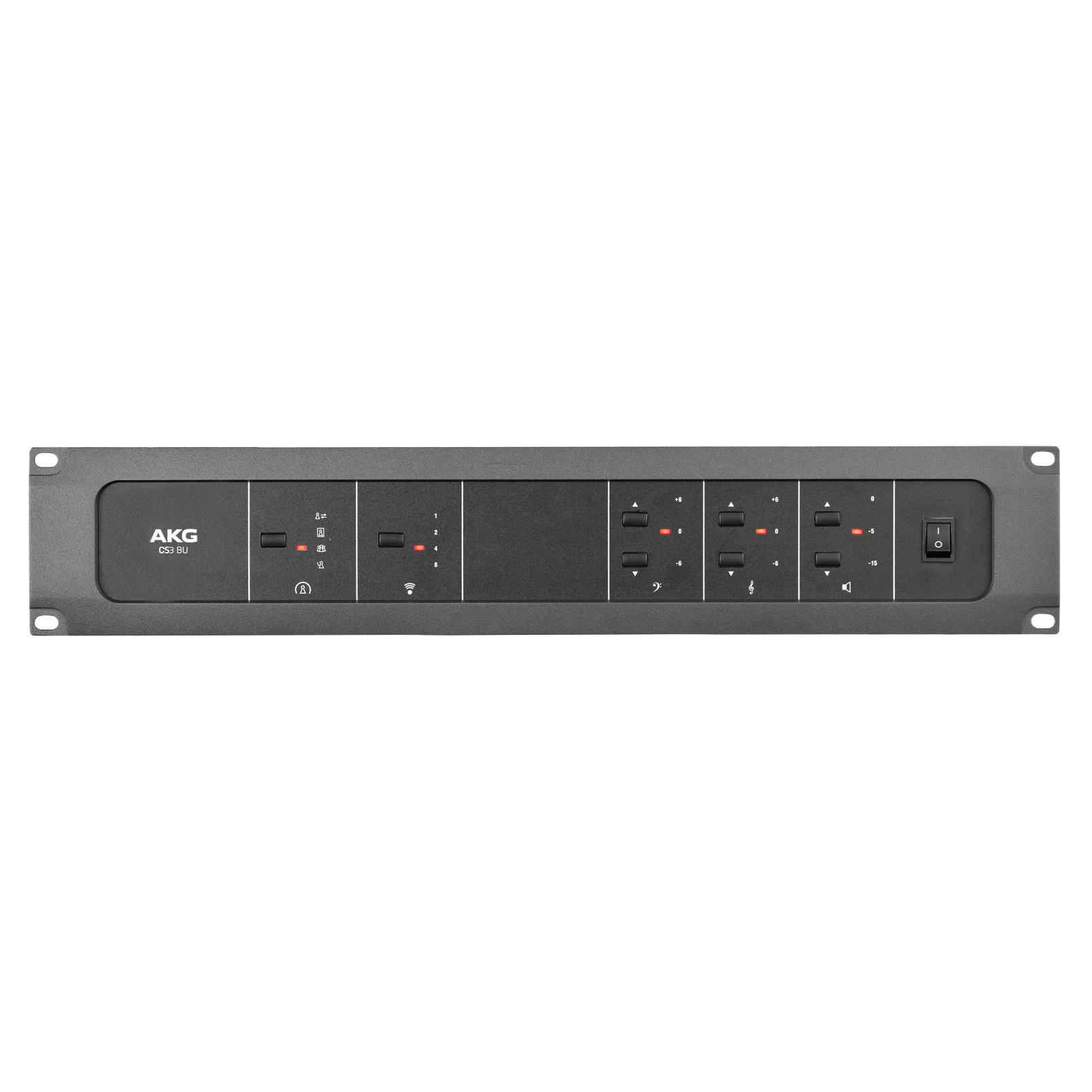

CS3 BU (B-Stock) All in one conference controller - Image

All in one conference controller

For discussion systems of up to 60 stations per base unit

CS3 BU (B-Stock) Four selectable operating modes - Image

Four selectable operating modes

For flexible conference management

CS3 BU (B-Stock) Connects to all relevant devices - Image

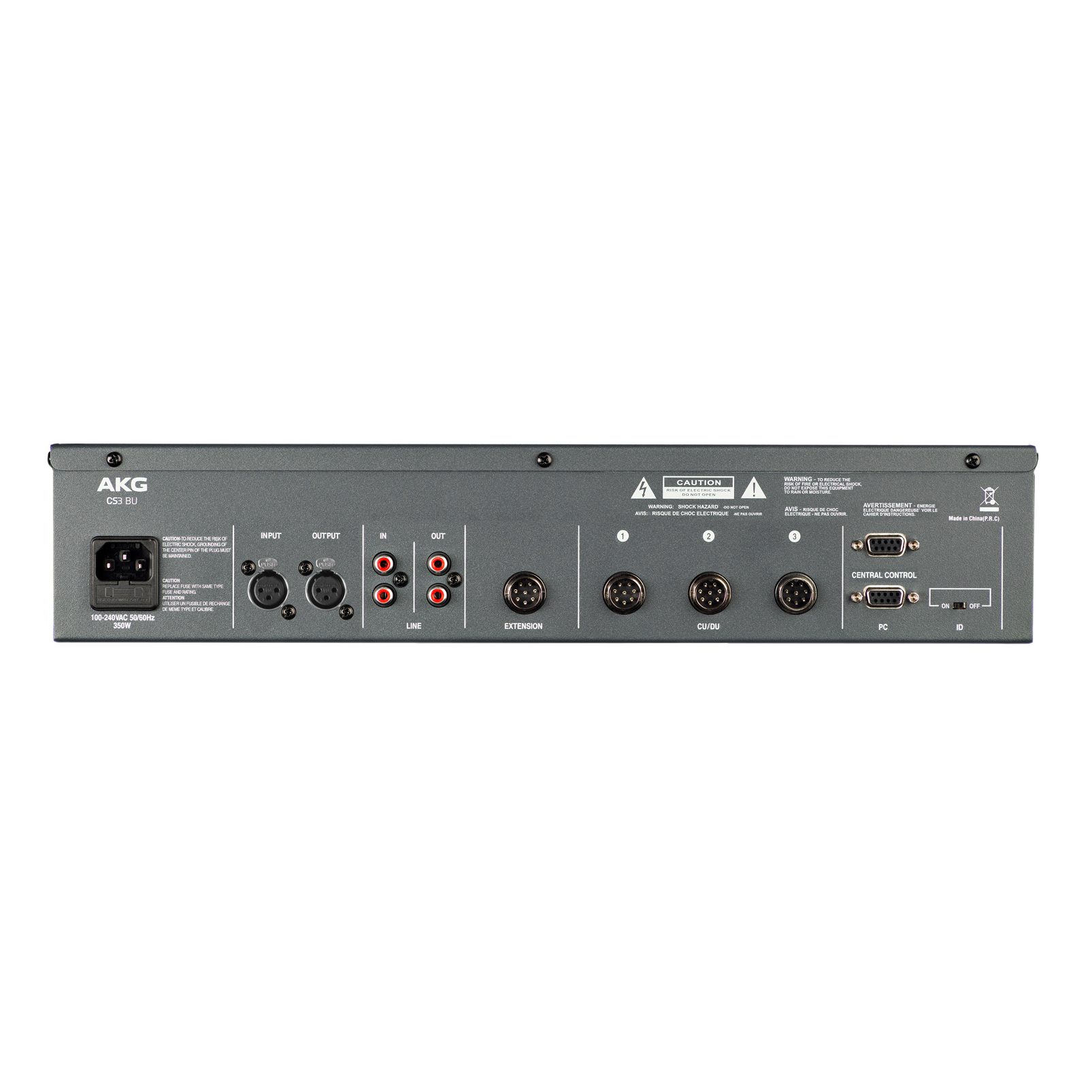

Connects to all relevant devices

e.g. PA, recording, ext. audio and camera control systems

CS3 BU (B-Stock) Compact 19" housing - Image

Compact 19" housing

For easy rack mounting

Specs & Downloads

Item# 3361H00250-Z

Description

Power in a box

The CS3 BU is the base unit for the CS3 conference system and provides all the necessary inputs and outputs to manage a conference for up to 60 microphone stations. It is the interface to all audio devices in a meeting room and offers a RS232 interface to connect an optional camera control system. The CS3 BU can even work in a stand-alone mode in four selectable operating modes offering maximum flexibility in conference management. With the NOM limitation function, the maximum number of active stations can be programmed to 1, 2, 4 or 6 simultaneous open microphones.

General Specifications

Power Supply
SMPS 100-240V (50Hz / 60 Hz) 3A
Static Consumption
13W
Nominal Power Consumption
320W
Output Power
≤90W / 24V each way
Mode
Balanced / Unbalanced
Frequency Response
50Hz-20kHz
S/N
>80dB
Harmonic Distortion
<0.5%
Harmonic Distortion at Overload
<1%
Crosstalk Attenuation (1kHz)
>50dB
Operating Temperature
0°C - 40°C at 95% relative humidity (non-condensing)

Dimensions

Length
482 mm
Width
281 mm
Height
88.4 mm
Weight
5.2kg

What's in The Box?

  • 1 x CS3 BU
  • Power cords EU, US, UK, China
  • Manual
