AKG

DHT800 Band1 50mW

Details
Variations

Reference digital wireless handheld transmitter

Promotions

This item is currently not available to order online directly from AKG.

Even more digital

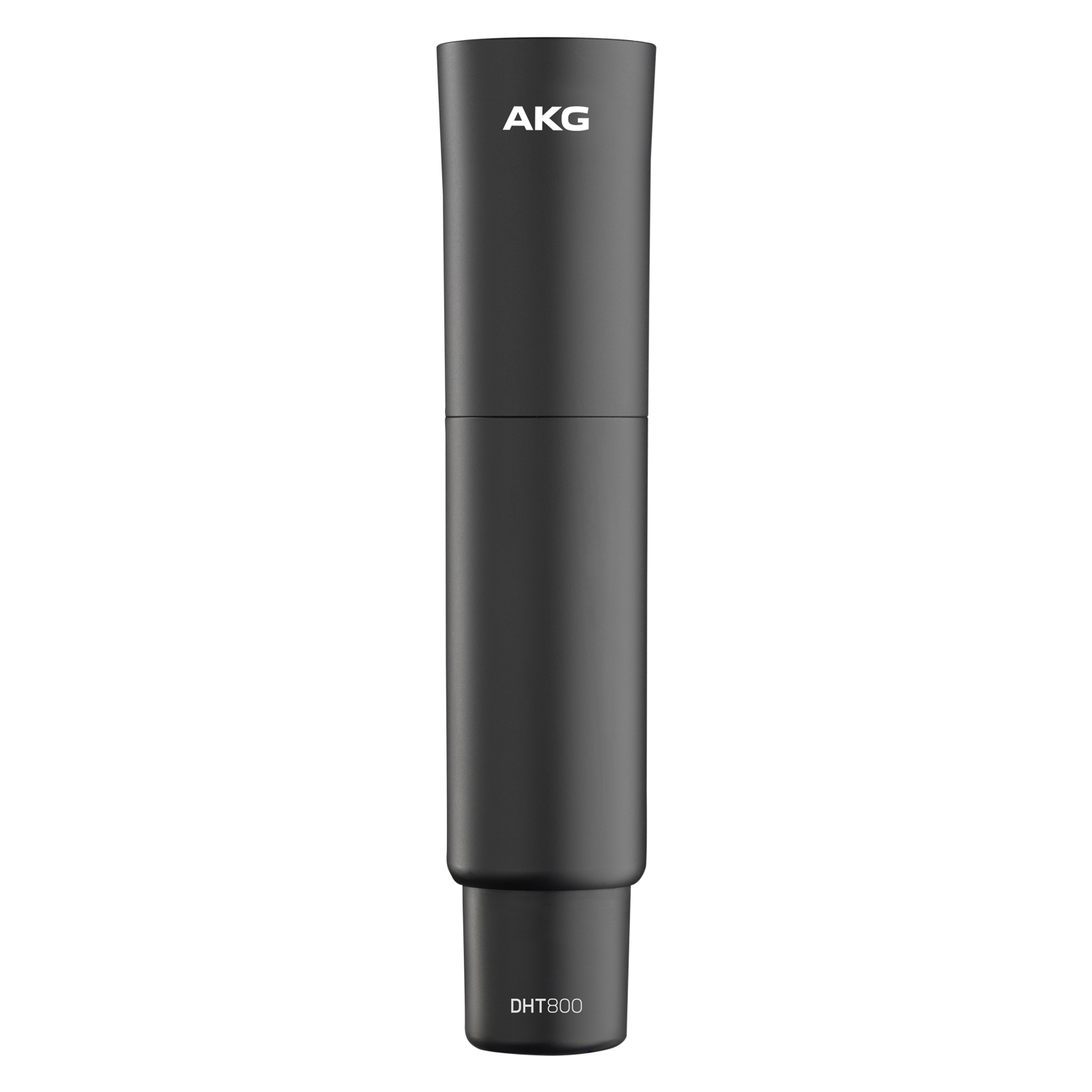

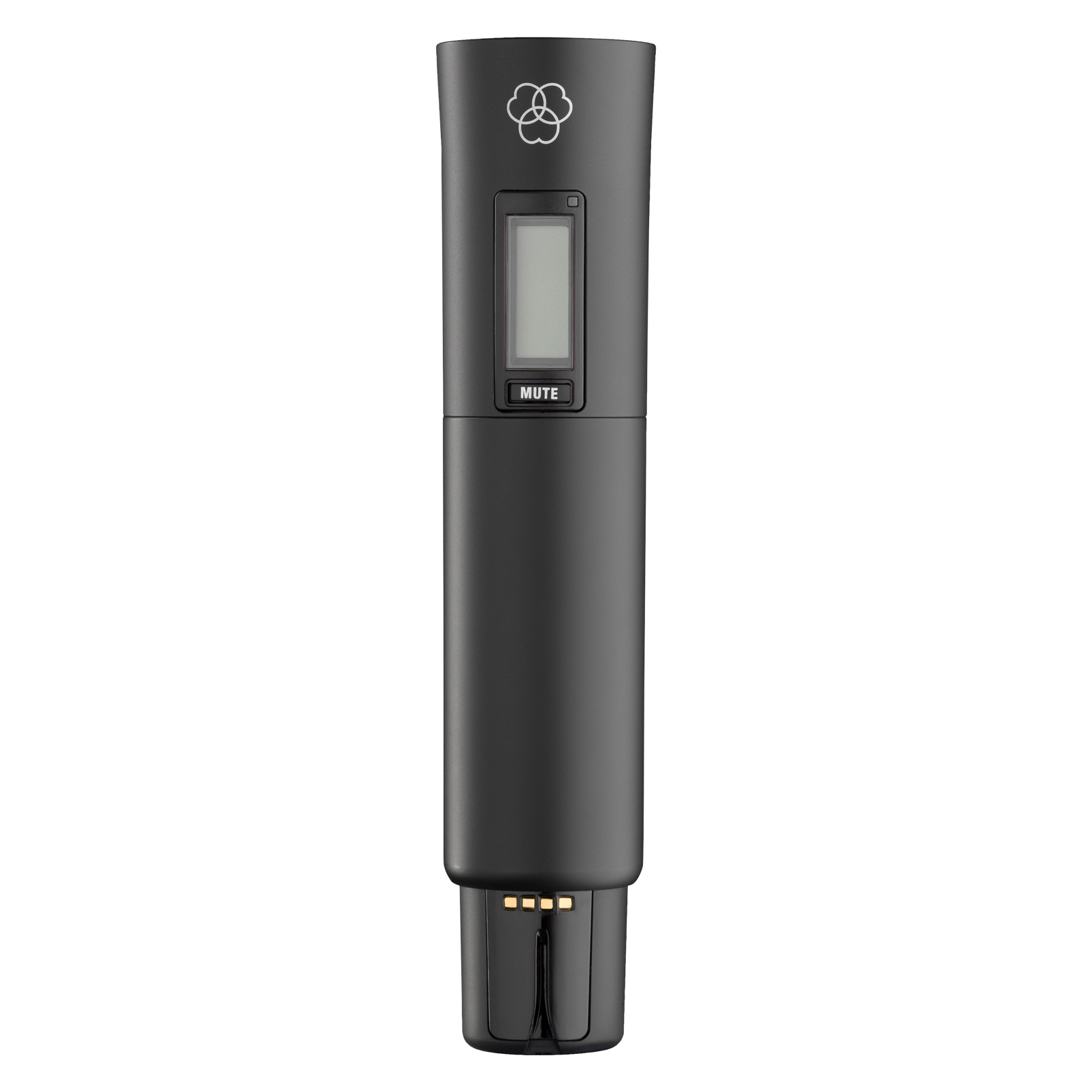

The DHT800 reference digital wireless handheld transmitter, for use with the DMS800 digital wireless microphone system, features a robust and slim metal body for durability and easy handling. It offers a new level of flexibility with interchangeable microphone heads – users can choose from among the AKG D5 WL1, D7 WL1, C5 WL1, C7 WL1 or the C636 WL1.

The DHT800 provides an ultra-wide bandwidth of 150MHz and a selectable radio output power of 10-50mW (depending on frequency band). A built-in helix antenna provides reliable wireless audio transmission, while state-of-the-art 512-bit encryption technology secures the audio signal against tapping. For additional flexibility, the mute switch can be set to operate as the power switch.

Item# 3381H00100

General Specifications

Carrier frequency range (country-dependent) Band 1 = 548.1 – 697.9 MHz
Switching bandwidth ≤ 150 MHz (country-dependent)
Transmission power 10, 20, 30, 50 mW (ERP max.), can be set via menu (country-dependent)
Scatter ≤ -70 dBc
Antenna Integrated helix antenna
Audio input gain 0 dB, +10 dB switchable
Operating time typ. 6.5 hours
Finish Black

Dimensions

Length 170 mm
Width 37 mm
Net Weight 180 g
