C414 XLII
Details https://www.akg.com/Microphones/Condenser%20Microphones/C414+XLII.html?dwvar_C414%20XLII_color=Black-GLOBAL-CurrentReference multipattern condenser microphone
Variations
Reference multipattern condenser microphone
The classic C12 sound

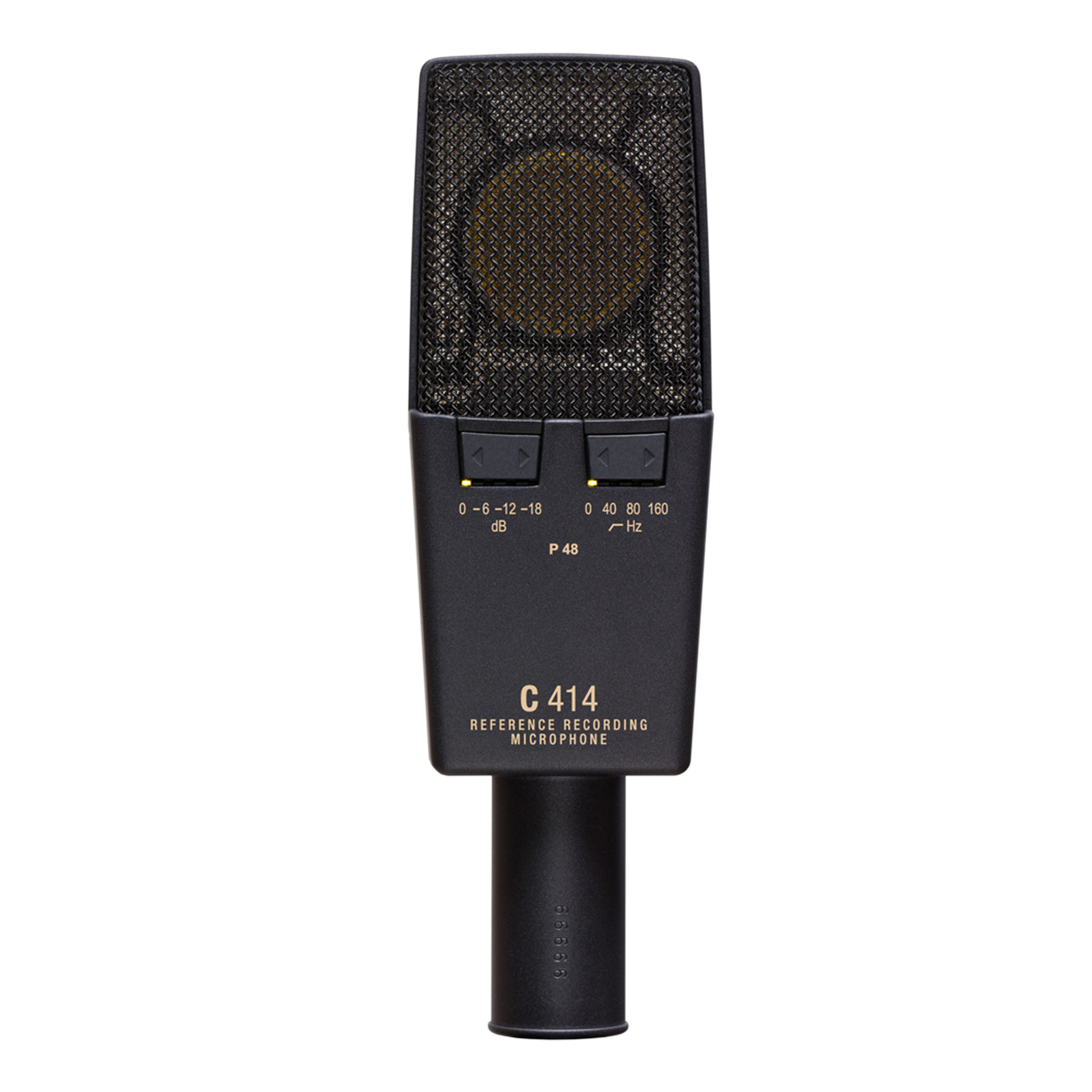

The C414 XLII multi-pattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use. The C414 XLII version differs from the C414 XLS version in one major respect – the capsule. The C414 XLII's slight presence boost and impressive spatial reproduction are both similar to the legendary AKG C12 microphone from 1953.
Item#
3059X00060
General Specifications
Audio frequency bandwidth
20 - 20000 Hz
Equivalent noise level
6 dB-A
Sensitivity
23 mV/Pa
Signal to Noise
88 dB-A
Preattenuation Pad
-6; -12; -18 dB
Bass cut filter
160; 80; 40 Hz
Electrical impedance
200 Ohms
Recommended load impedance
2200 Ohms
Polar Patterns
Omnidirectional, Wide Cardioid, Cardioid, Hypercardioid, and Figure of Eight
Dimensions
Length
38 mm
Width
50 mm
Height
160 mm
Net Weight
300 g
Design
Finish
dark gray/gold
Audio Output
Type
Balanced XLR
Gender
Male
Contacts
3-pin
Powering Interface
Voltage
44 to 52 V
Current
4.5 mA
Application
Pro Studio
Yes
Instrument
Vocals
Yes
Piano / Strings
Yes
Horns / Woodwinds
Yes
- 1 x C414 XLII Microphone
- 1 x H85 Universal Shock Mount
- 1 x Metal Carrying Case
- 1 x PF80 Pop Filter
- 1 x W414 Windscreen C414
