AKG

PZM11 LL

Details
Variations

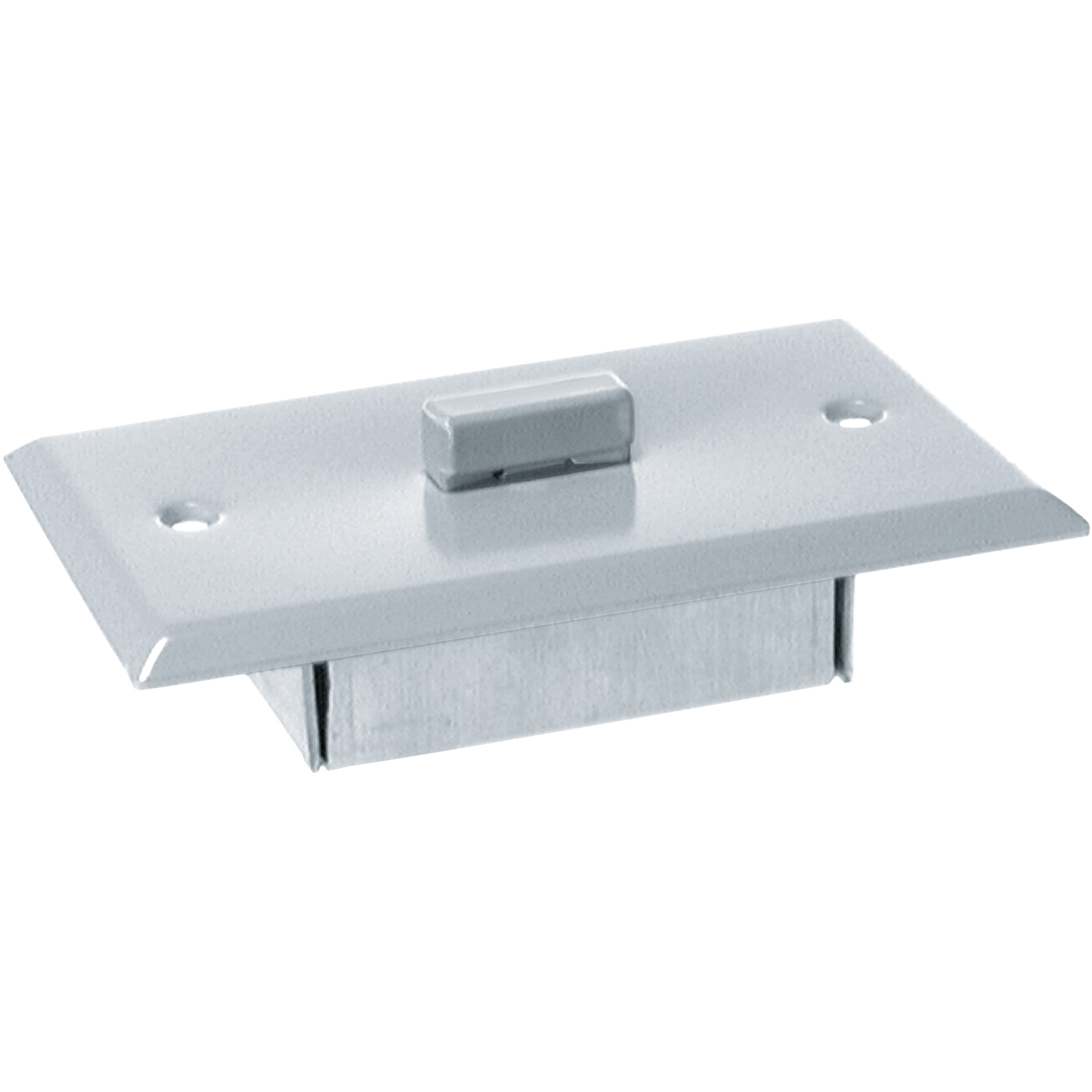

Professional flush-mount line-level boundary layer microphone

$139.00139.0 each
Promotions

Add Headphones Over $19.95 to get Free 2 Day Shipping.

(Details)
UPS-BOX Order by 04 hrs 02 mins with 2 Day Shipping and receive by Mon, Nov 26
Your zip code 20149 edit | Want it faster?
Listen up!

The PZM11 professional boundary layer microphone is designed for security and surveillance applications. The PZM11 is characterized by a consistent pickup anywhere around the mic. Low frequencies below the voice range are rolled off to reduce the pickup of heating, ventilation or air-conditioning rumble (HVAC noise). The high-frequency response is boosted slightly to aid clarity and articulation. The PZM11 has a mic-level output and is powered by 12-48V phantom power. Electronics on the rear of the plate offer screw terminals, eliminating the need for connectors.

Item# PZM11_LL

General Specifications

Audio frequency bandwidth 80 - 20000 Hz
Equivalent noise level 26 dB-A
Sensitivity 5 mV/Pa
Signal to Noise 68 dB-A

Dimensions

Length 115 mm
Width 70 mm
Height 29 mm
Net Weight 71 g

Design

Finish off-white

Audio Output

Type screw material

Powering Interface

Voltage 12 to 48 V

Application

Retail Yes

Device

Boundary Layer Microphone Yes

Search Result For ""

what is the difference between the PZM 11 and the PZM 11 LL your desciption is the same for both.

Asked by: joeblow
The LL means Line Level output, not mic level.  You would not need to go into a mic preamp with this option as the preamp is built into the mic housing.
Answered by: RMTLLC
Date published: 2018-10-23
