AKG

HP4E

Details
Variations

4-channel headphone amplifier

$125.00 125.0 each
Promotions
Product Actions
Add to cart options
+

In stock and ready to ship

The ideal compact headphone amp

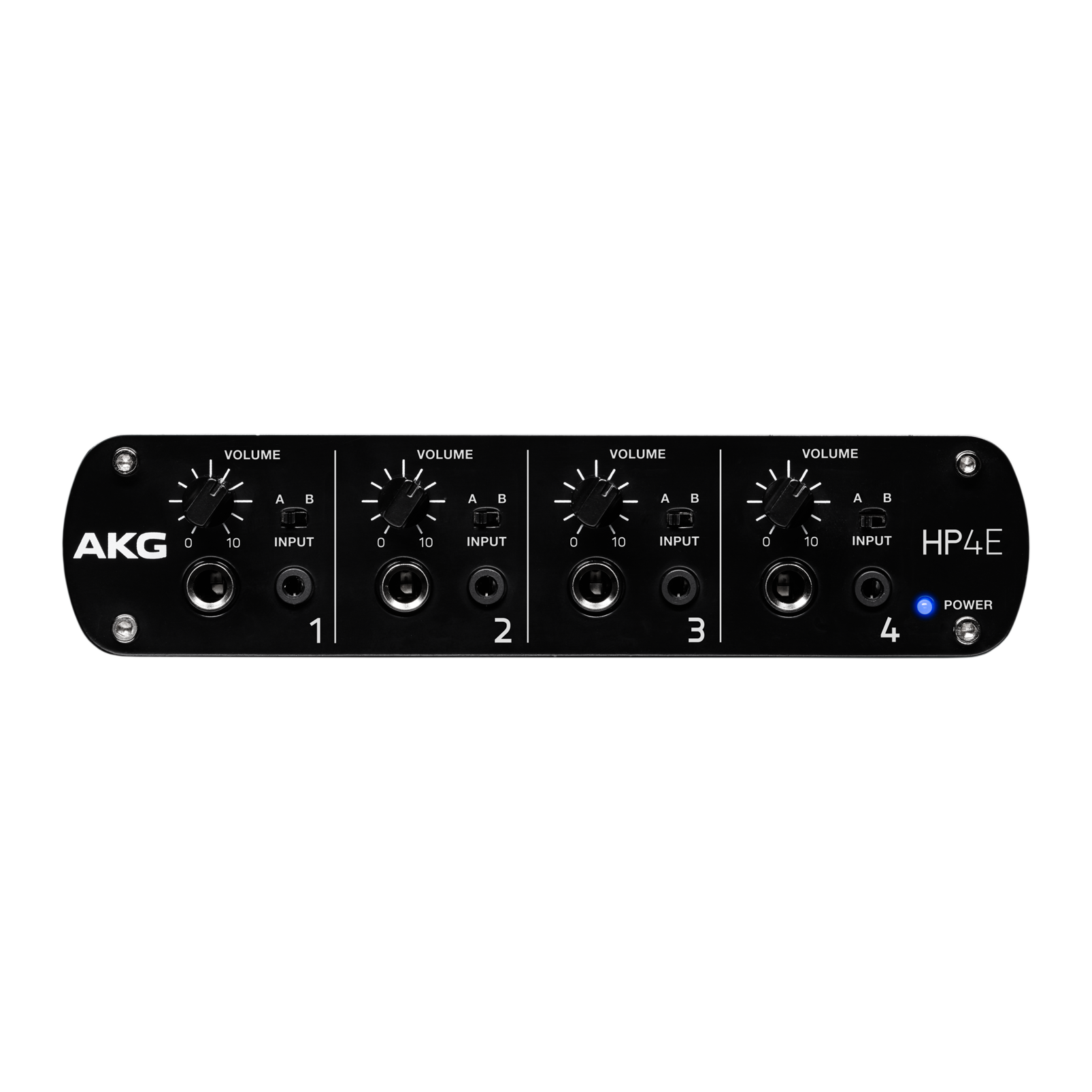

The HP4E professional headphone amplifier features two stereo input and four stereo output channels of high-quality audio. Designed for ease of use, convenient switches on the front plate enable you to select your designed input. Each channel features both a 1/8” (3.5 mm) and 1/4” (6.3 mm) headphone output for easy connectivity – no adapters required. Housed in a sturdy metal chassis, the HP4E is an ideal headphone amp for any recording session. Available in the US only.

Item# 3450H00010

General Specifications

Design 4-Channel Headphone Amplifier

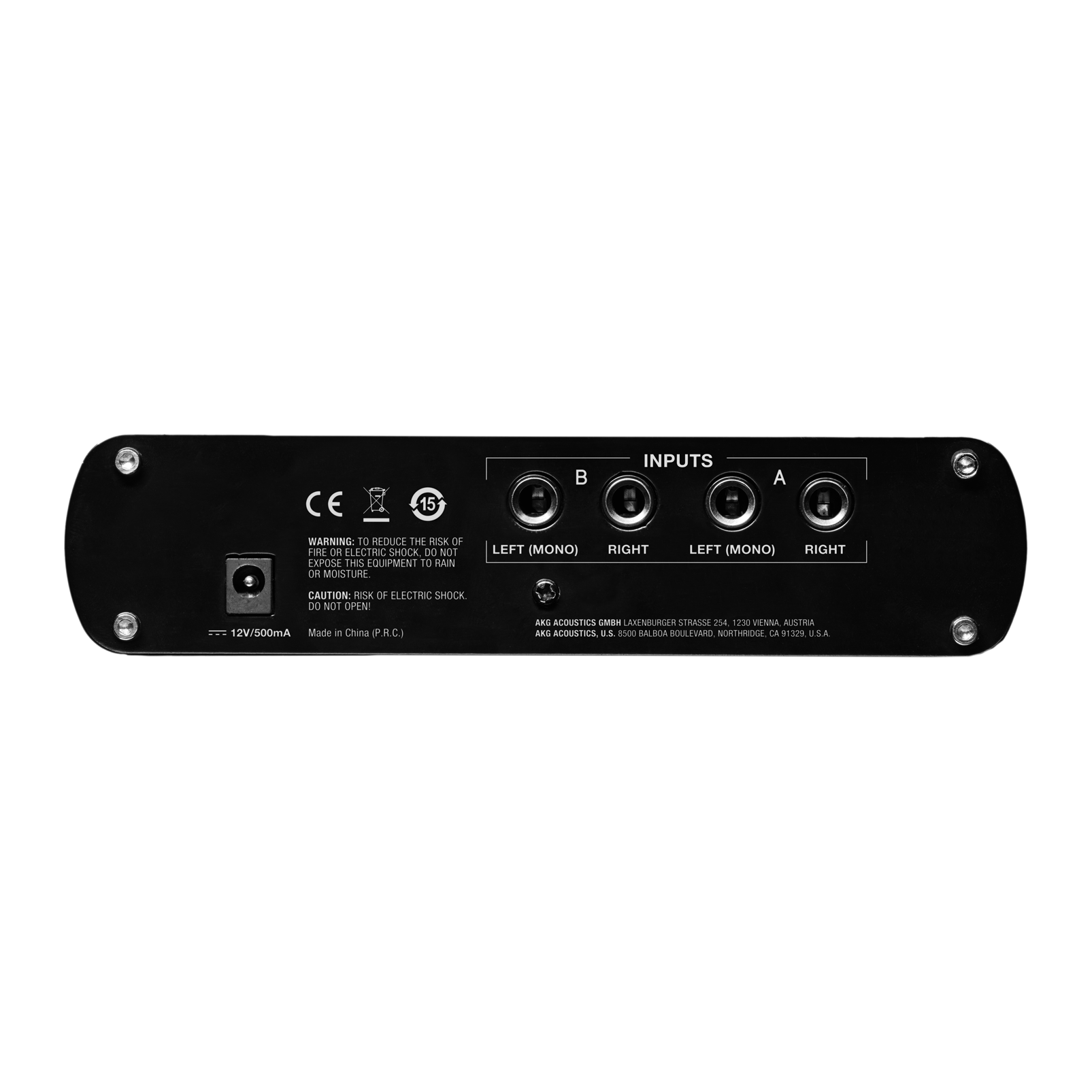

Input 6.3 mm (1/4”) socket - unbalanced
Input impedance 100k Ohms
Output 3.5 mm (1/8”) socket and 6.3 mm (1/4”) socket per channel
Output impedance 11 Ohms
Audio frequency bandwidth 20 - 20000 Hz
Max. output level 220 mW
Distortion <0.05%
Signal to Noise better than 85 dB-A
Net weight (incl. power supply) 760 g
  • 1 x HP4E
  • 1 x Power Supply (12V)
  • 1 x Quick Set Up Guide

The latest owner's manuals, quick start guides, and documents.

Search Result For ""

FAQs
